Cold Room Panel PUR/PIR Insulation
Specially developed for areas requiring controlled temperatures, these panels meet sensitive storage needs in sectors such as food, pharmaceuticals, medical, and chemicals with high hygiene standards and efficient thermal control. Thanks to their special joint detail, they prevent thermal bridge formation and provide maximum airtightness. With PUR/PIR insulation filling featuring low thermal conductivity, they minimise energy losses and offer a durable, cost-effective cold storage solution that shortens project timelines through easy and fast installation.
Product Details

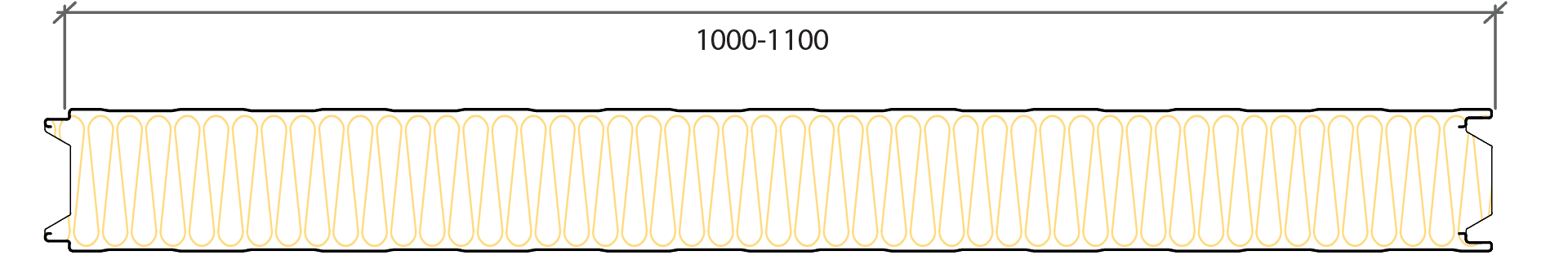

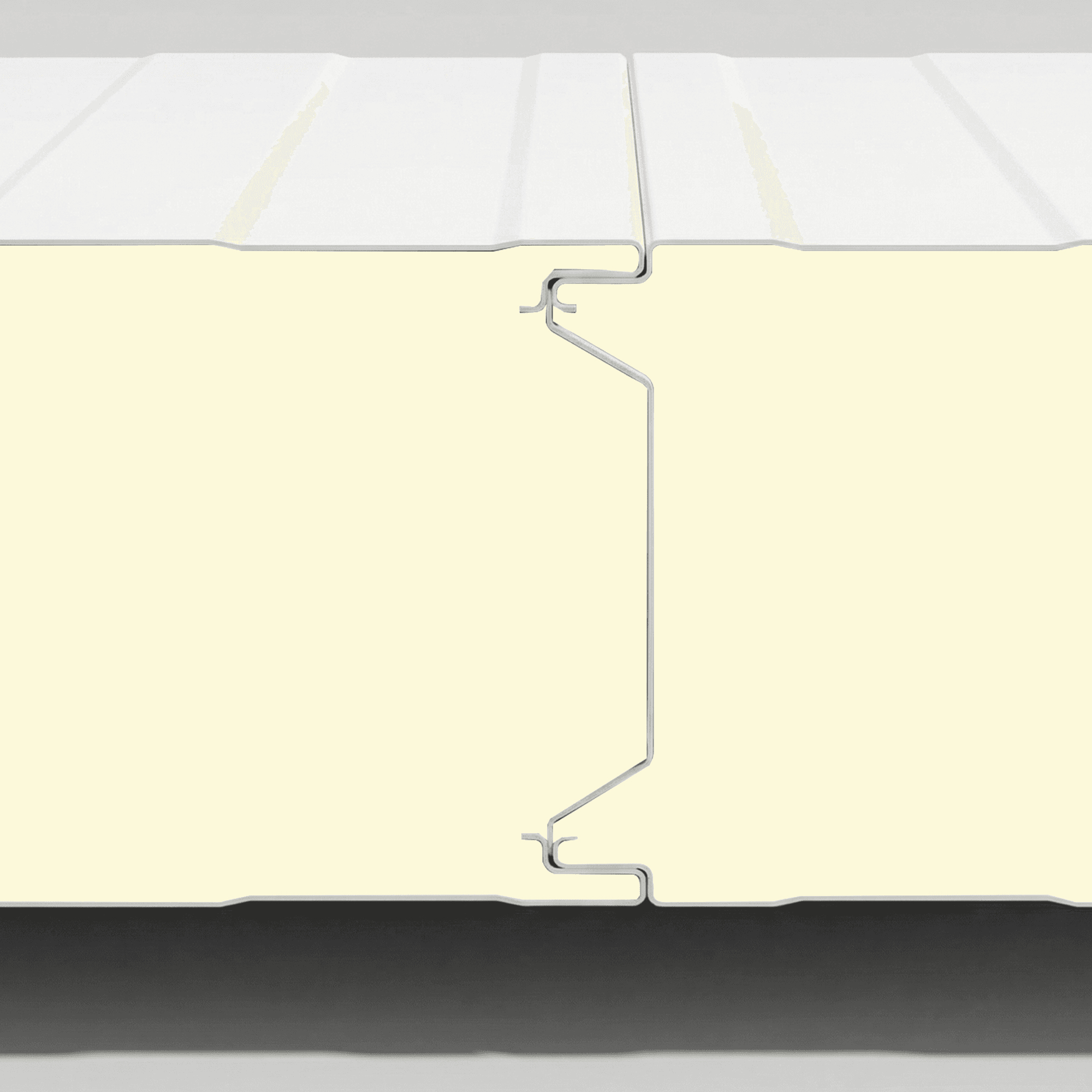

• Insulation Core: PUR/PIR Insulation (Density: PUR 38-40 ±2 kg/m³ / PIR 40 ±2 kg/m³) • Cover Width (Effective Width): 1000 - 1100 mm • Profile: Cold Room Panel • Fastening Detail: Special joint detail (Provides full airtightness by preventing thermal bridge formation and supports controlled temperature conditions) • Panel Length: 2.20 m - 13.60 m • Insulation Thicknesses: 80, 100, 120, 150, and 200 mm options are available • Application Area: Facade / Cold Rooms (Areas requiring controlled temperature; food industry, medical products, pharmaceutical industry, laboratories, hospitals, and cold storage facilities) • Performance and Safety: Bs2d0 - Bs1d0 non-combustibility class (Maximum thermal conductivity value: λ = 0.022 W/mK)
