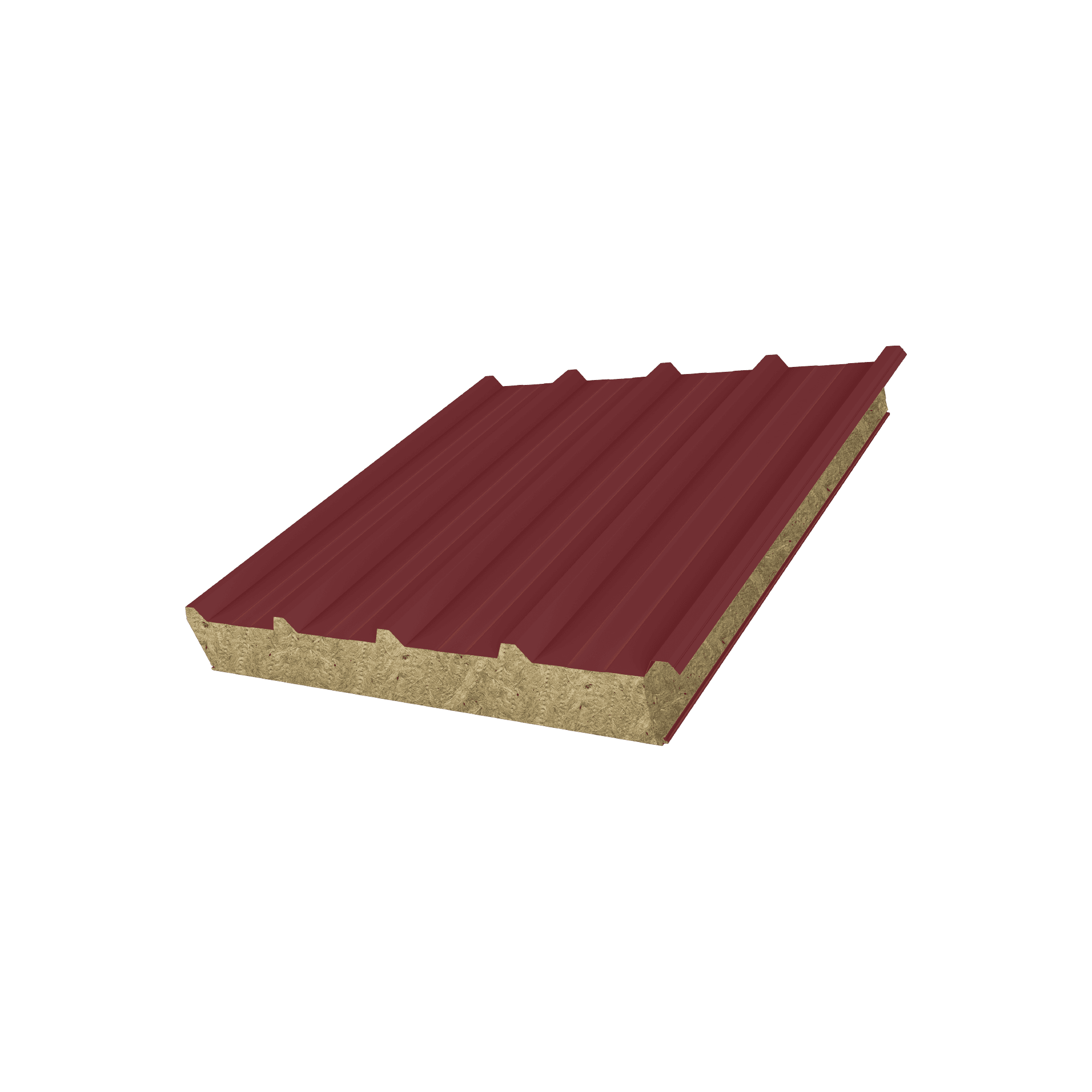

5 Hadveli External Screw Roof Panel Rock Wool Insulation
Perfectly compatible with solar energy systems, this panel allows solar panels to be integrated directly thanks to its special clamping system, without requiring any surface drilling. By reducing the risks of corrosion and water leakage caused by screw use to zero, it safeguards the roof’s structural integrity. Standing out with the superior thermal insulation and fire resistance provided by its stone wool core, this product is a sustainable, safe, and long-lasting roofing solution for industrial and commercial buildings with a slope of 5% or more.
Product Details

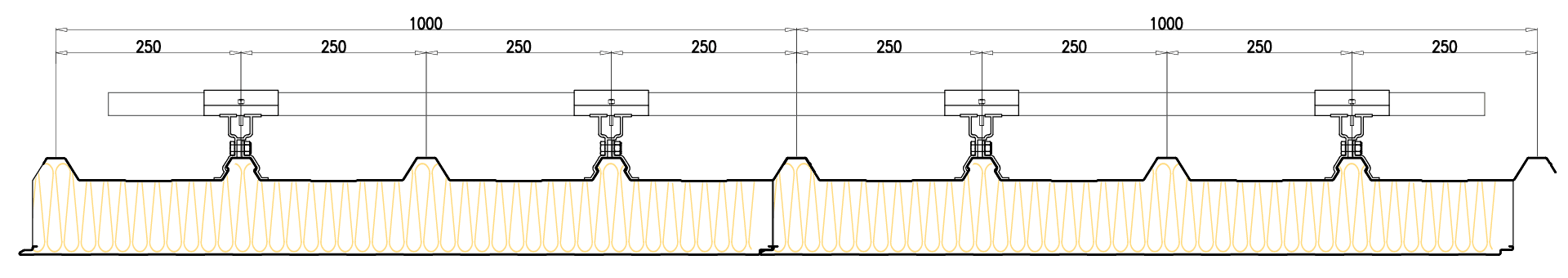

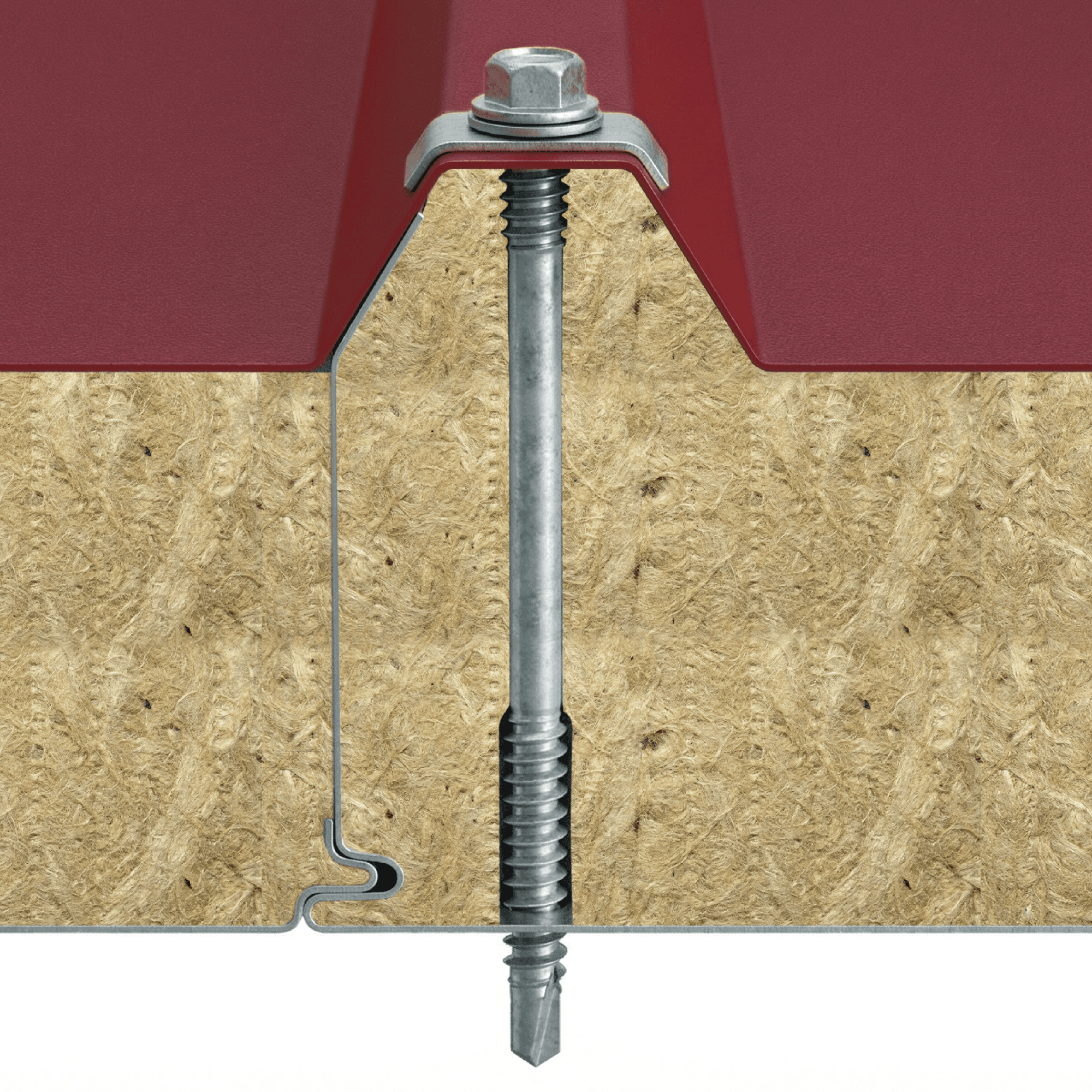

• Insulation Core: Rock Wool Insulation (Density: 100 ±10 kg/m³) • Cover Width (Effective Width): 1000 mm • Profile: 5-Rib Externally Screwed Solar Roof Panel • Fixing Detail: Externally screwed / with specially designed clamp system (Solar panels can be directly integrated without perforating the sandwich panel surface) • Panel Length: 2.50 m - 13.60 m • Insulation Thicknesses: 50, 60, 80, 100, 120, 150 and 200 mm options are available • Application Area: Roofs (all industrial and commercial buildings with a slope of 5% and above) • Performance and Safety: A2 s1 d0 non-combustibility class (Maximum thermal conductivity value: λ = 0.038 W/mK)
