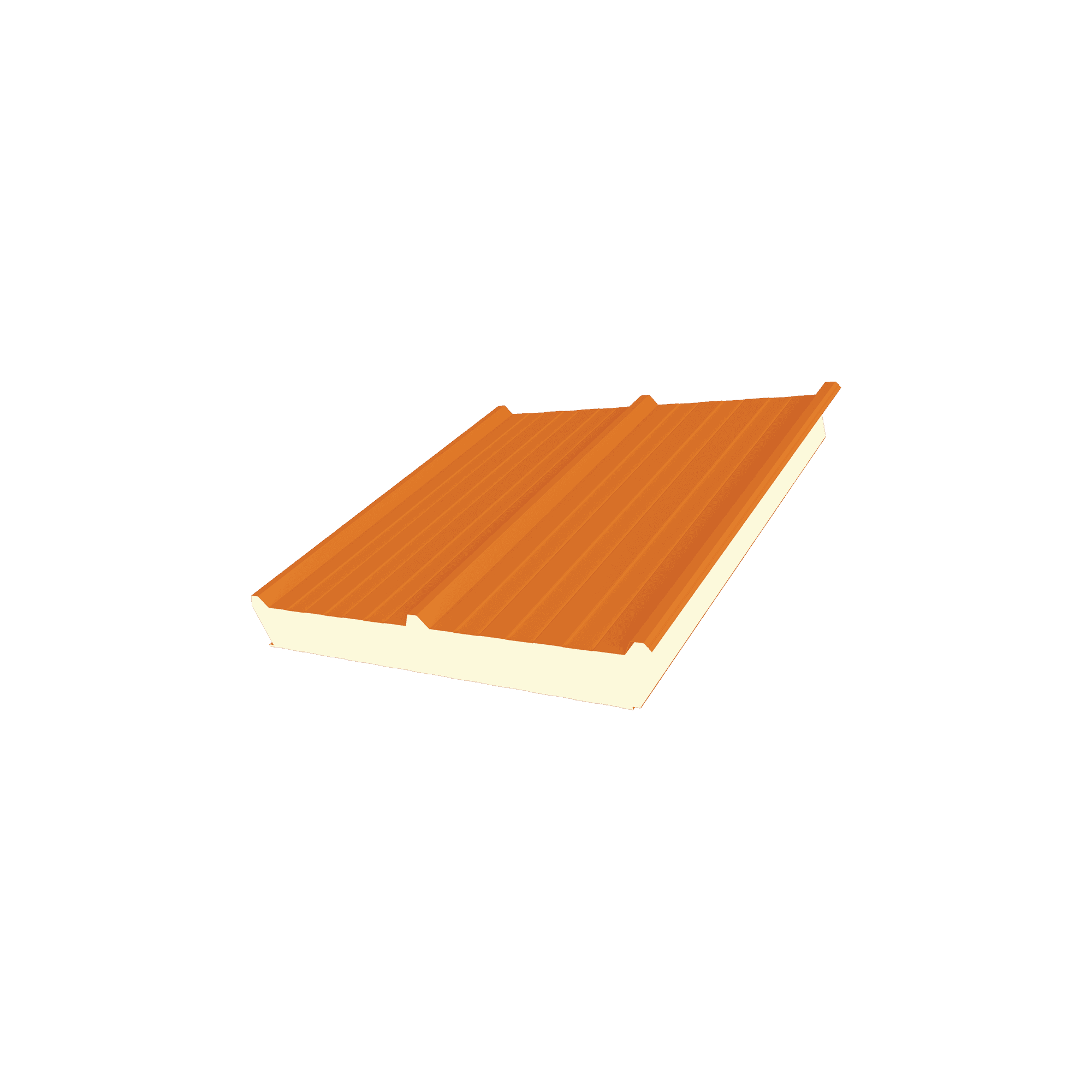

3 Hadveli External Screw Roof Panel PUR/PIR Insulation
It is an economical roof panel that requires less material usage with optimized 3-hat profile geometry, minimizing energy losses. Developed with an understanding of optimum strength at the right point, it offers fast and controlled assembly on roofs with a slope of 5% and above. GreenCore R3EF Roof Panel
Product Details

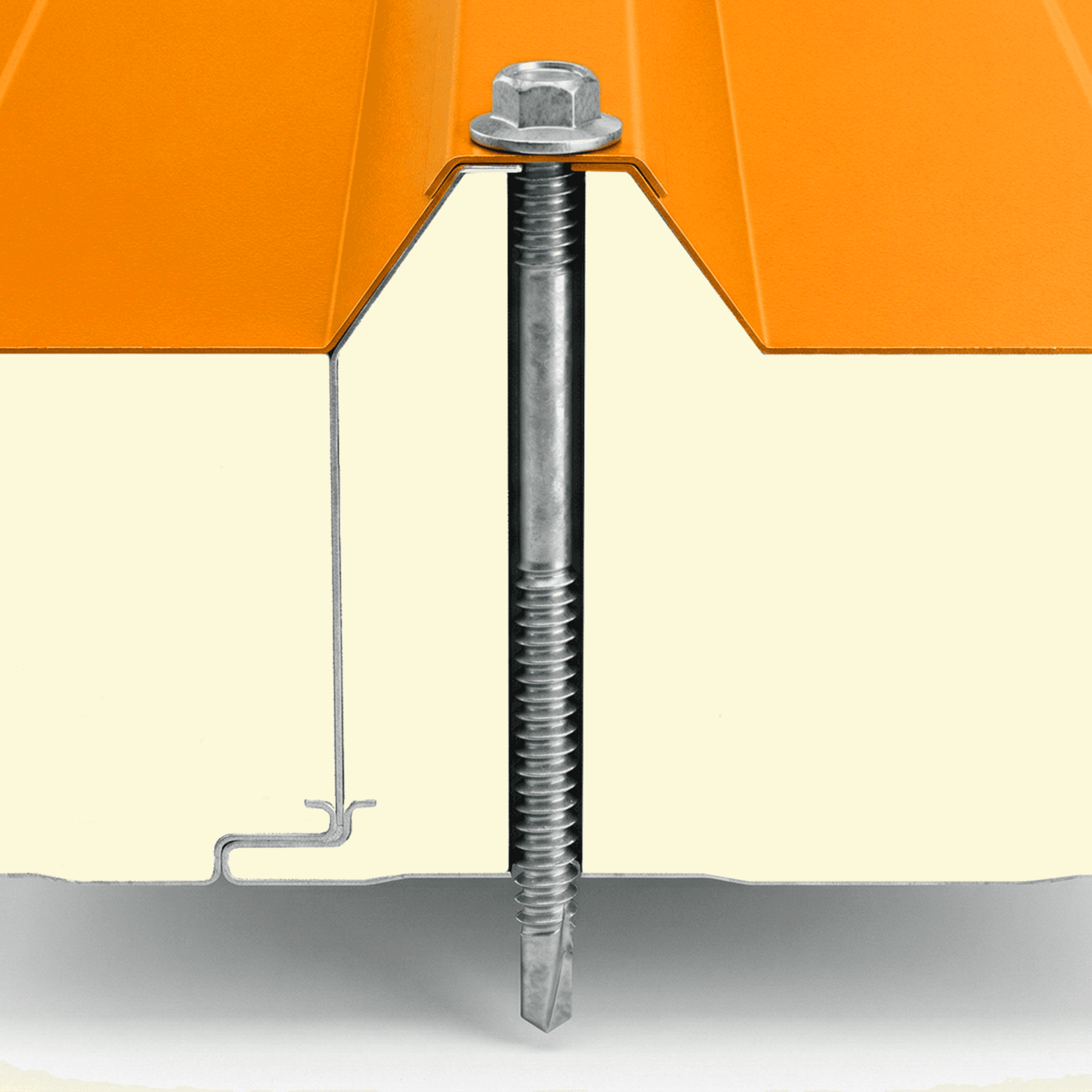

• Insulation Core: PUR/PIR Insulation (Density: PUR 38-40 ±2 kg/m³ / PIR 40 ±2 kg/m³) • Cover Width (Usable Width): 1000 mm • Profile: 3 Ribbed (Rib height: 30 mm) • Fastening Detail: Screw from outside • Panel Length: 2.20 m - 13.60 m • Insulation Thicknesses: Options of 30, 40, 50, 60, and 80 mm are available • Application Area: Roof (for roof slopes of 5% and above; a reliable solution for industrial facilities, warehouses, hangars, and light steel structures) • Performance and Safety: Bs2d0 - Bs1d0 fire resistance class (Maximum thermal conductivity value: λ = 0.022 W/mK)
